Full Spectrum CRI98 TunableWhite LED COB 12Watt 2700K-6000K LM-80 COB LED

Name: Full Spectrum CRI98 TunableWhite LED COB 12Watt 2700K6000K LM80 COB LED
Brand: TYANSHINE
Price: 1 USD

Quality Full Spectrum CRI98 TunableWhite LED COB 12Watt 2700K-6000K LM-80 COB LED wholesale

Brand Name : TYANSHINE

Model Number : TX-1312SW08A-2760V39-03H98

Certification : ISO9001, ISO14001

Place of Origin : CN

MOQ : 100

Packaging Details : In plastic tray

Current : 400mA

Voltage : 36-39V

Power : 12W

Color Temp. : 2700K-6500K

Efficiency : 100lm/W

CRI : 98

COB Size : 13.35*13.35mm

LES : Diameter 8mm

Contact Now

Full Spectrum CRI98 TunableWhite LED COB 12Watt 2700K-6000K LM-80 COB LED

Features of Bi-color White LED COB

Cross-distribution of LED chips in a circular LES to perform a better color-mixing through optics reflectors or Lenses, anti polarized light and anti color cast;
Adopting Eutectic bonding packaging technique with flip-chips, conductivity reach 120-160 W/m-k to enable a longer lifespan;
Variable CCT-tunning from 2700K-6500K, dimming from 0%-100%
Compatible with the housing / reflectors and Lenses / holders

Specification:

Item Code

Color

I_F
(mA)

V_F
(V)

Power

(W)

CCT (K)

CRI
(Ra)

Lumen
(lm)

LES
(mm)

TX-1312SW08A-2760V39-03H98

400

36-39

5750-6300

800

Φ7.6

400

36-39

2620-2760

950

(W - White, S - WarmWhite) , Ta = 25℃

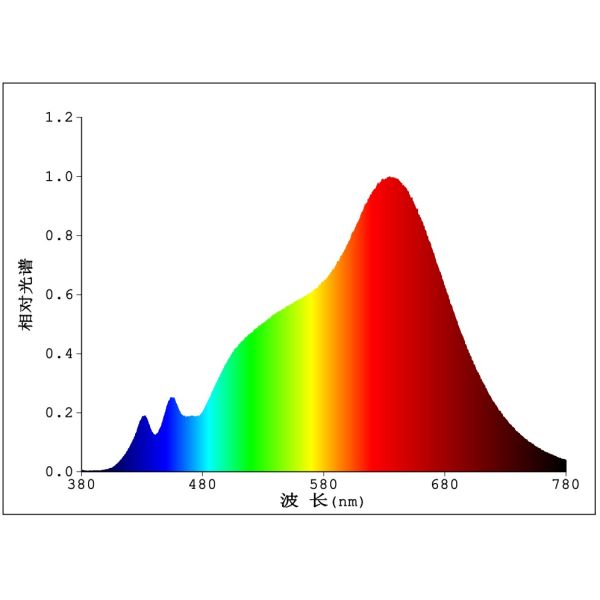

Full Spectrum:

CCT=3000K

CCT=6000K

Applications:

Commercial lighting / Residential lighting / Smart lighting

spot lights,down lights, ceiling lights,bulb lights or tracking lights ...

Photography lighting Fresnels lights

Product Tags:

Tuneable White COB

cob smd led
